GAI MONOBLOCK IN STAINLESS STEEL MODEL 3504A, 16/1/16/1, SECOND-HAND MACHINE

PRICE:
Category:

Description

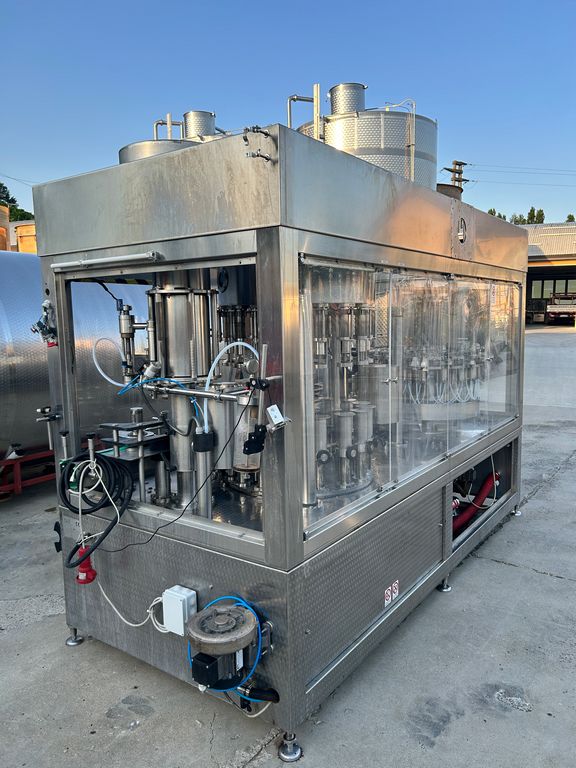

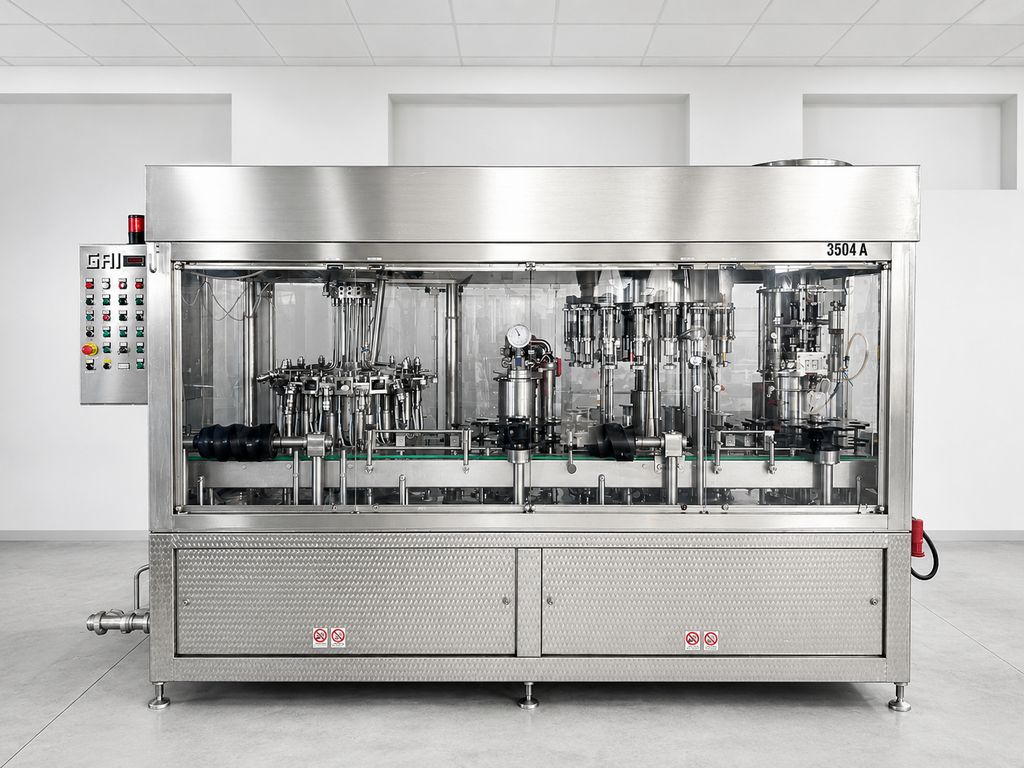

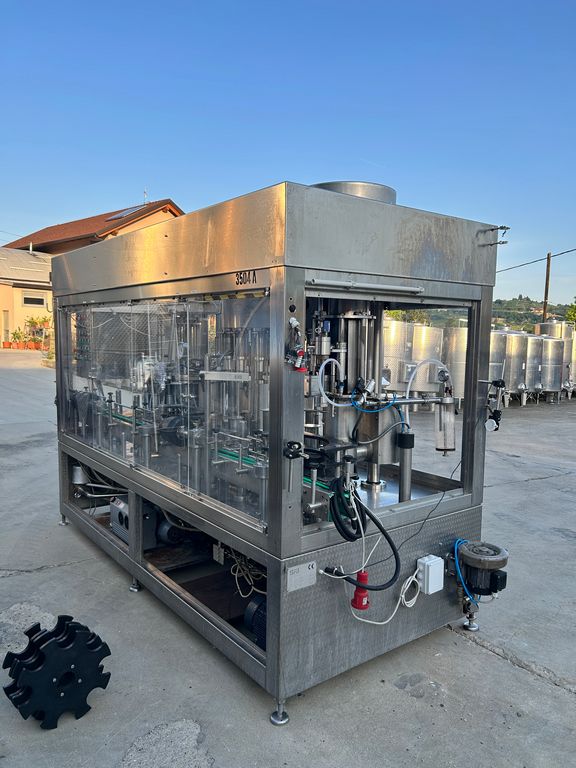

GAI monoblock, model 3504A, 16/1/16/1, stainless steel construction, composed of:

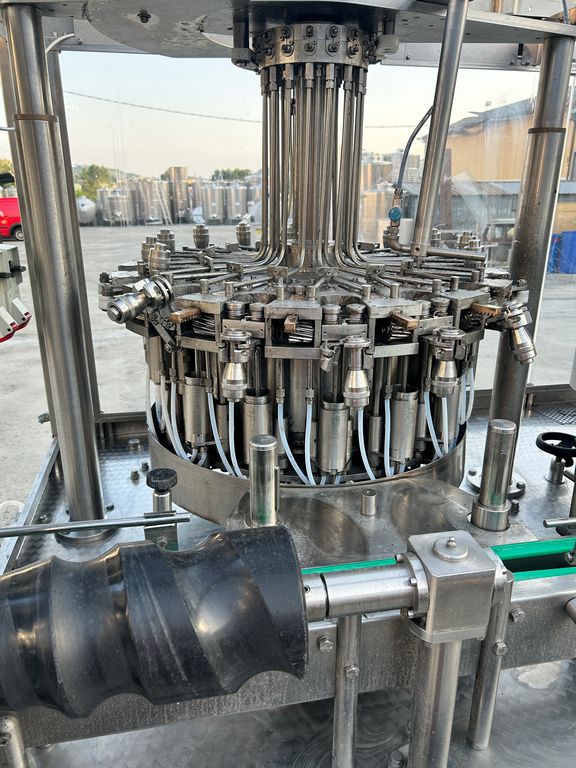

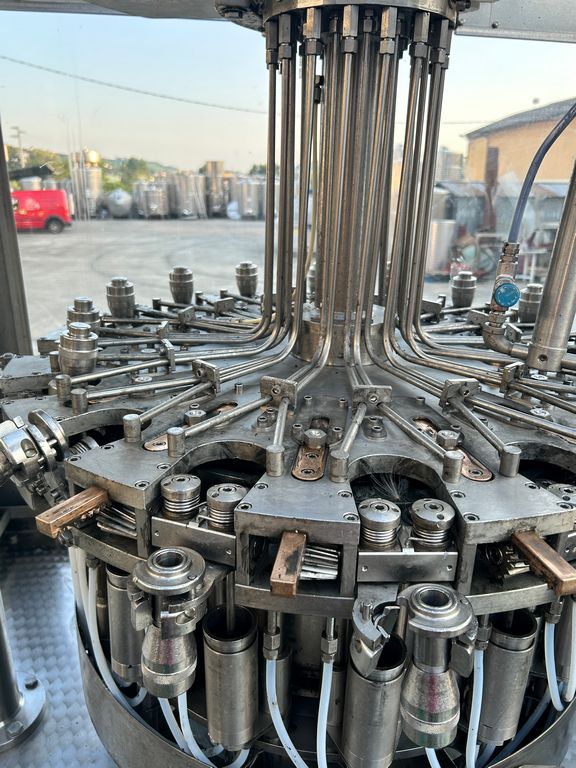

Rinsing machine 16 noozles, double treatment with mobile nozzle, stainless steel floating grippers, external bottle neck blowing, air filtration kit and dummy bottles for sterilisation.

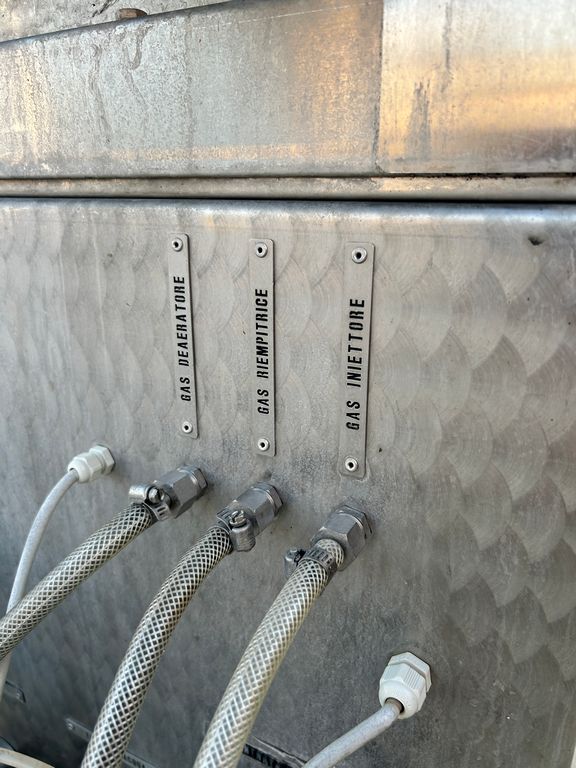

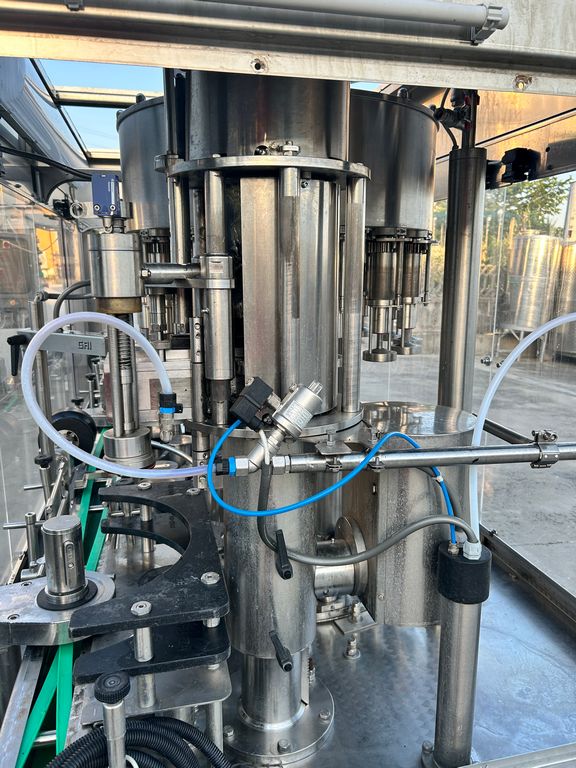

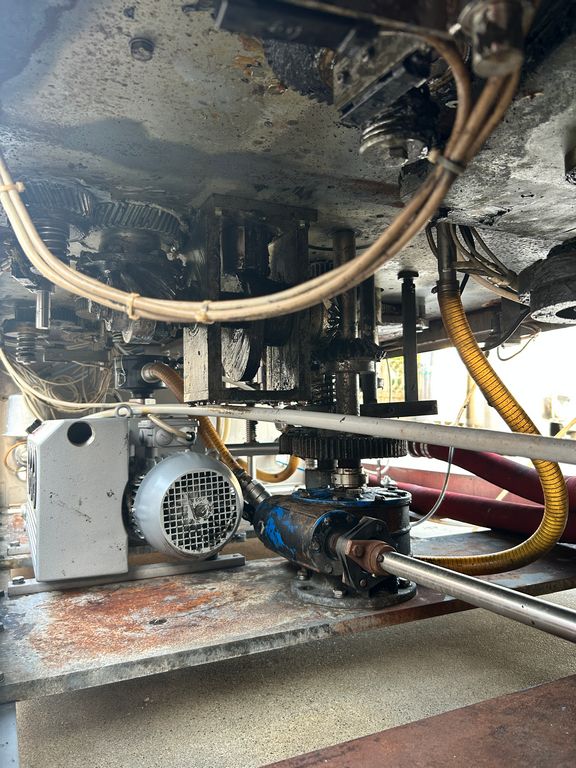

Deaeration station by vacuum pump and gas injection into the bottle.

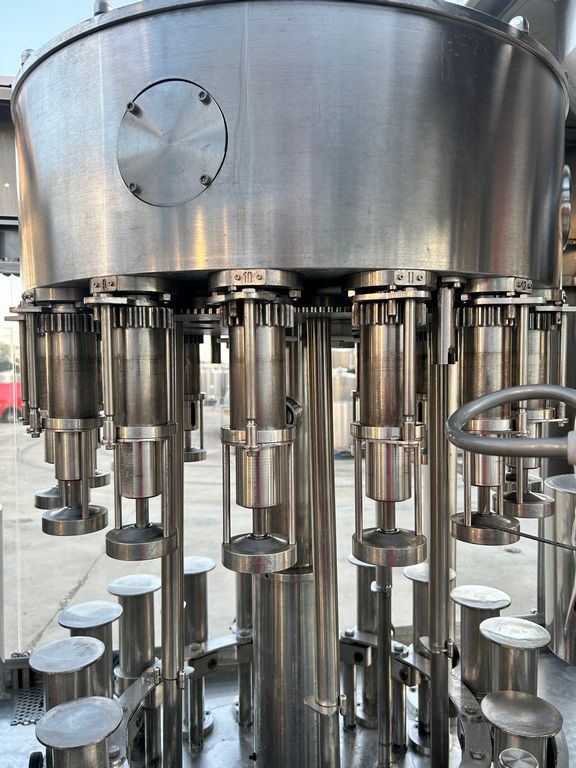

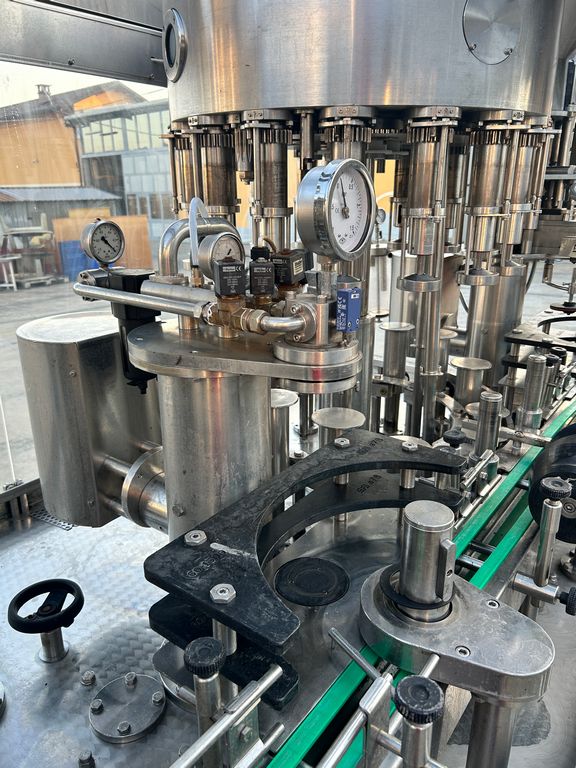

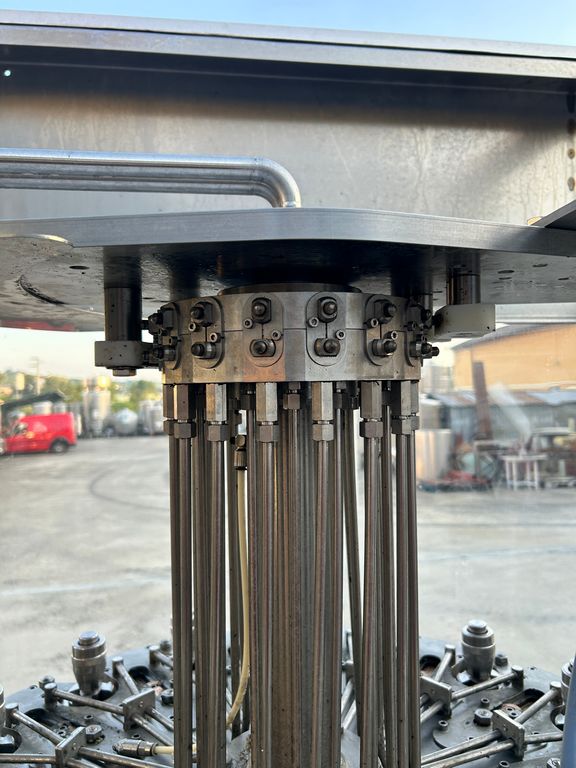

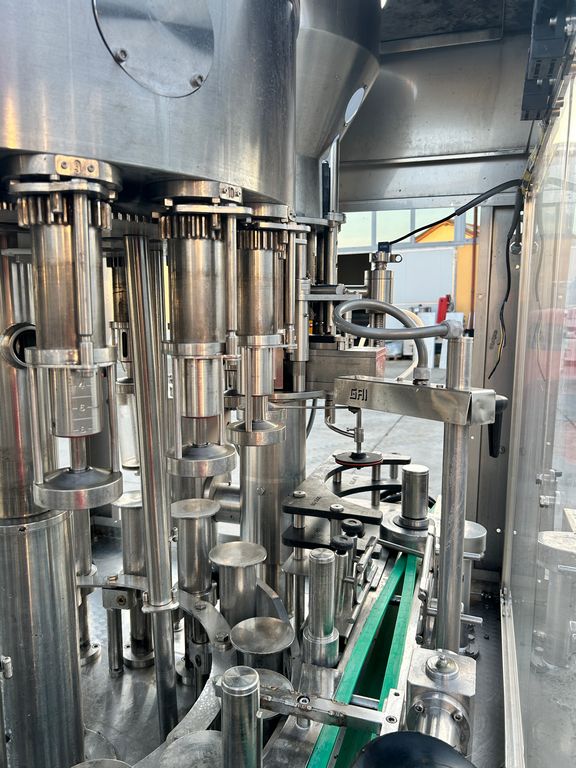

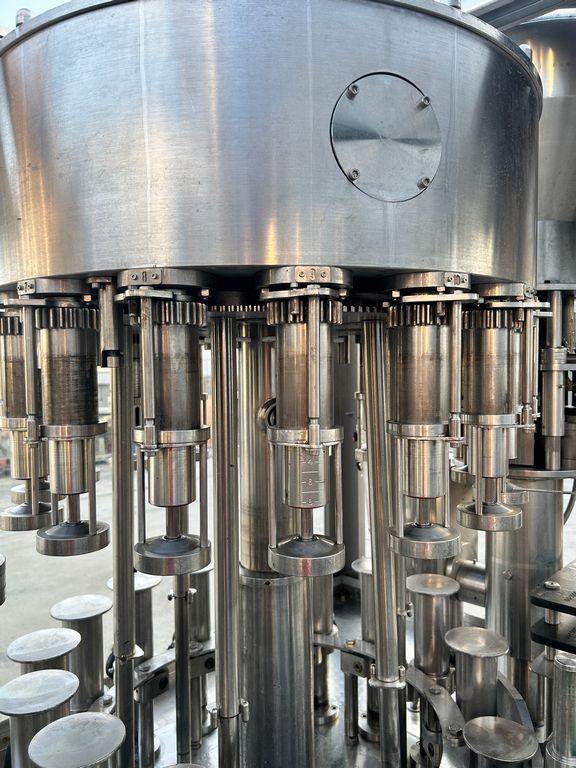

16-valve gravity / slight vacuum filler with centralised level adjustment and automatic valve opening for washing.

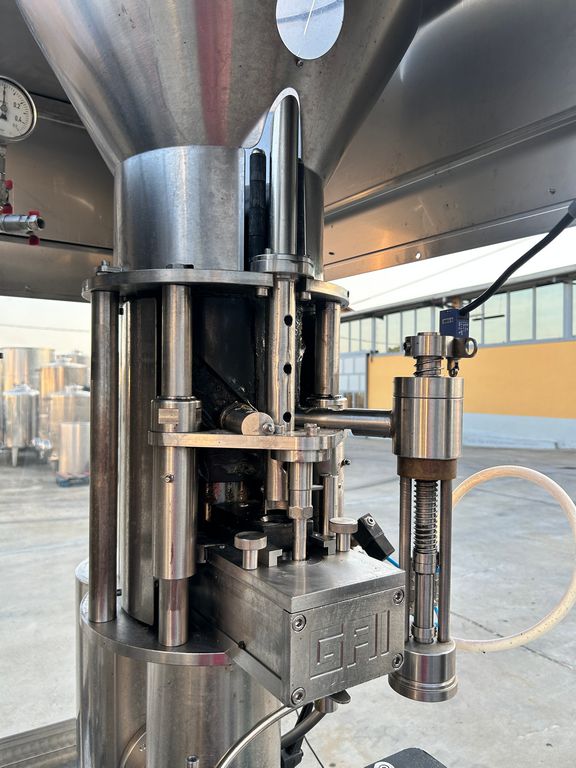

Single-head corker for natural corks with vacuum system, complete with sensor for cork presence in the bottle.
Production capacity: approx. 3.000 bottles/hour.

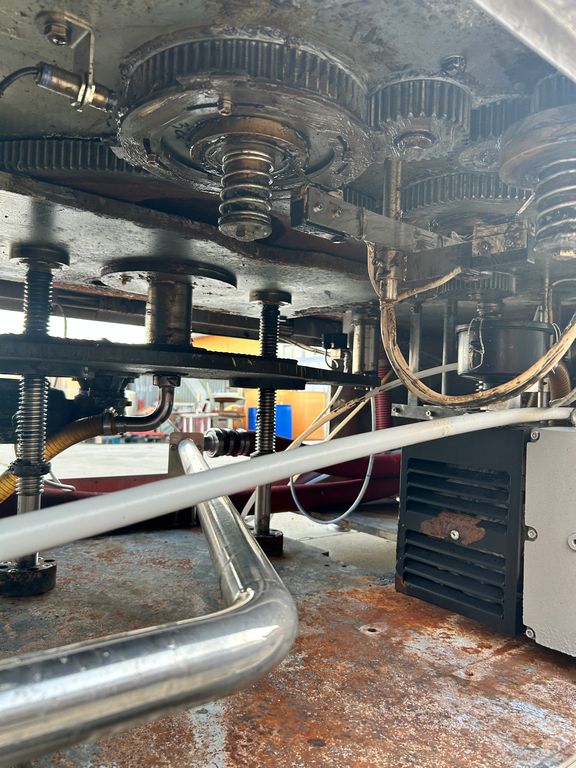

Electric height adjustment on all turrets.
Inverter for speed adjustment.
Three-phase power supply, 380 V, 50 Hz.

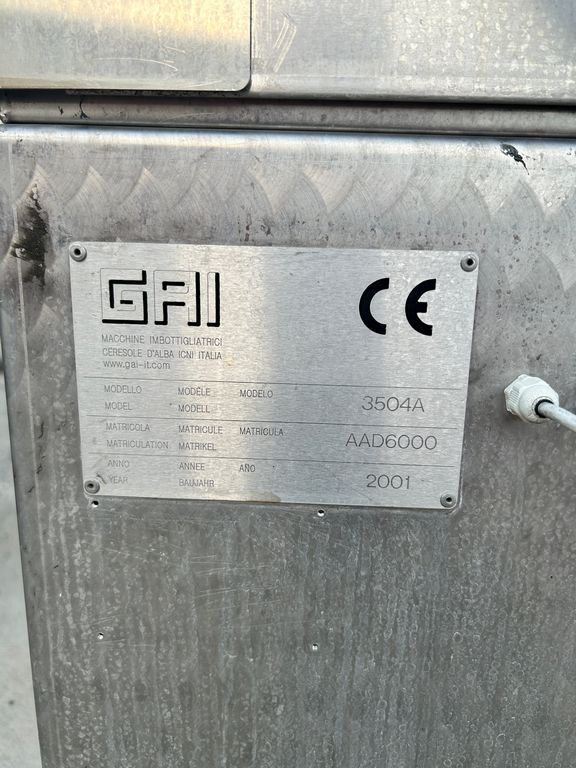

Year: 2001.
Dimensions: Length 3800 mm x Width 1350 mm x H 2300 mm approx.
Weight: approx. 3500 kg.
Complete with use and maintenance manual and CE certificate.

The machine has always been maintained and generally overhauled every year directly by a GAI technician.
Used equipment in good working condition.
Sold in its current condition, as seen and approved.
