Description

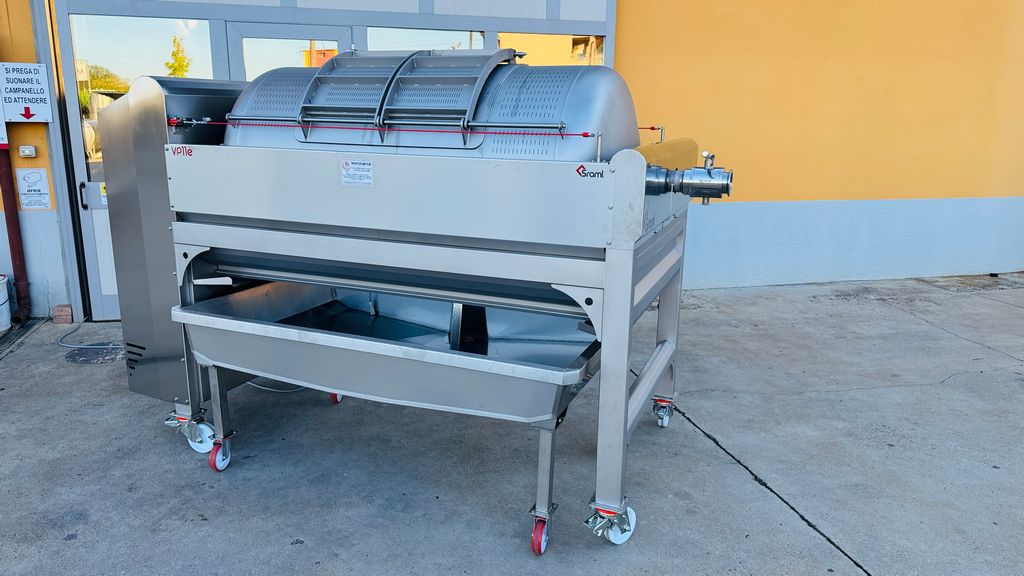

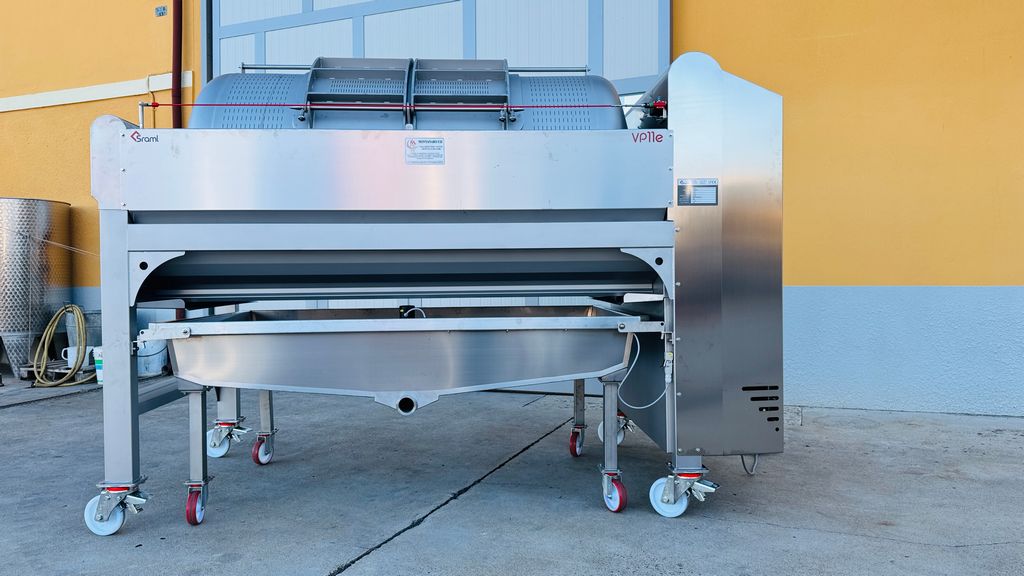

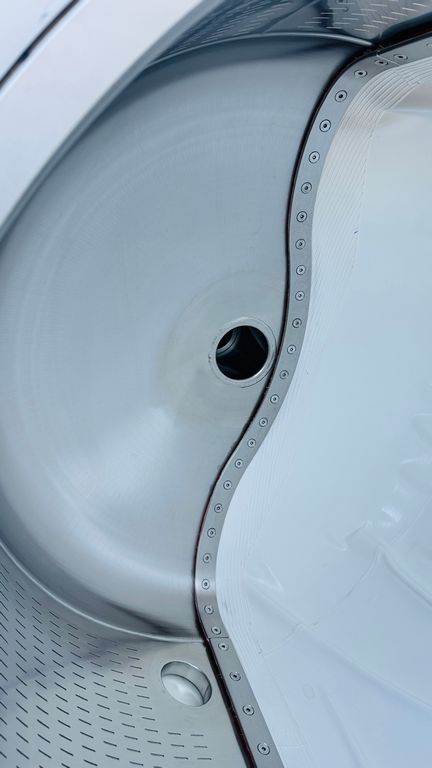

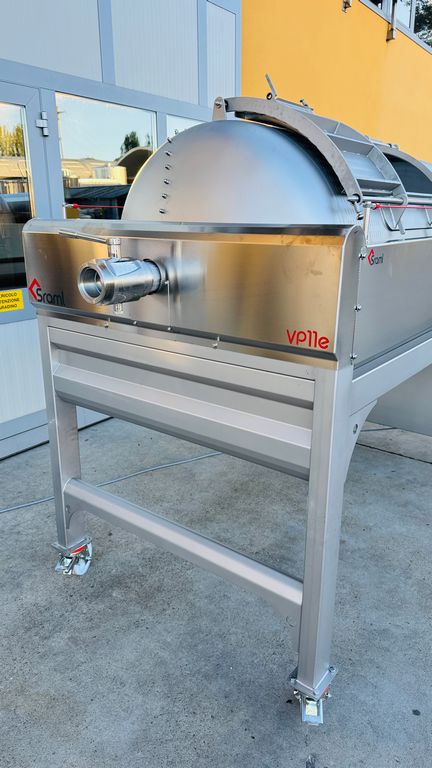

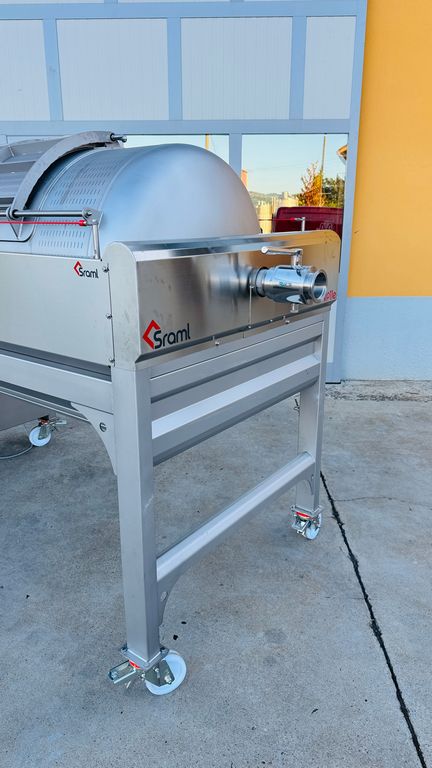

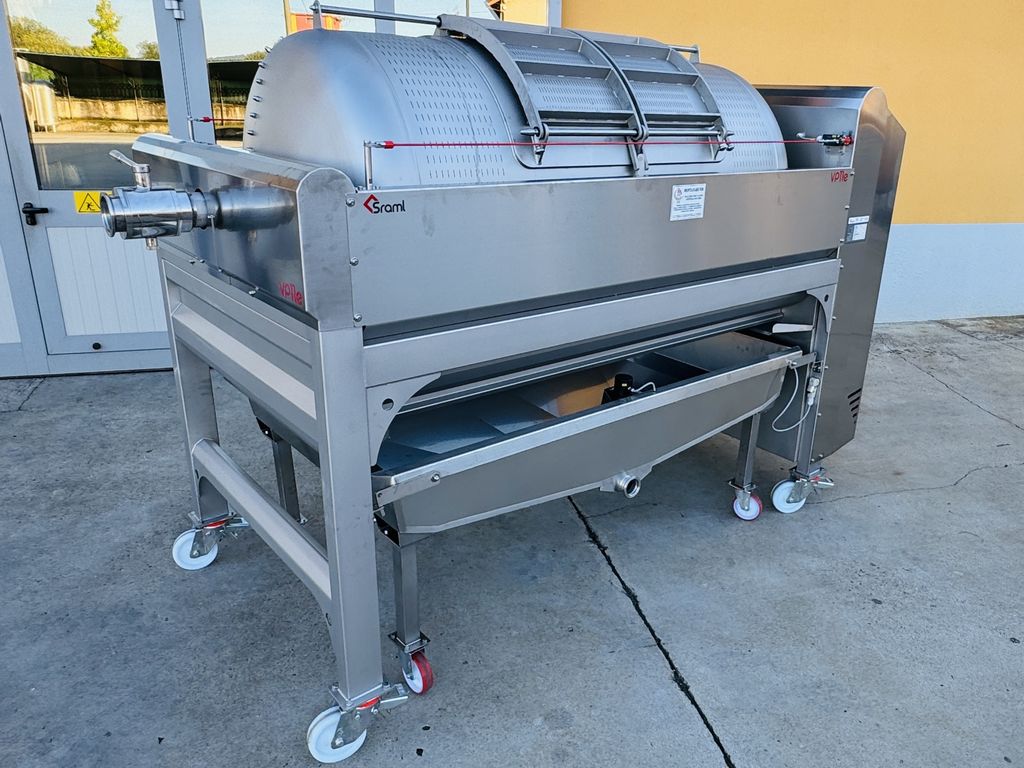

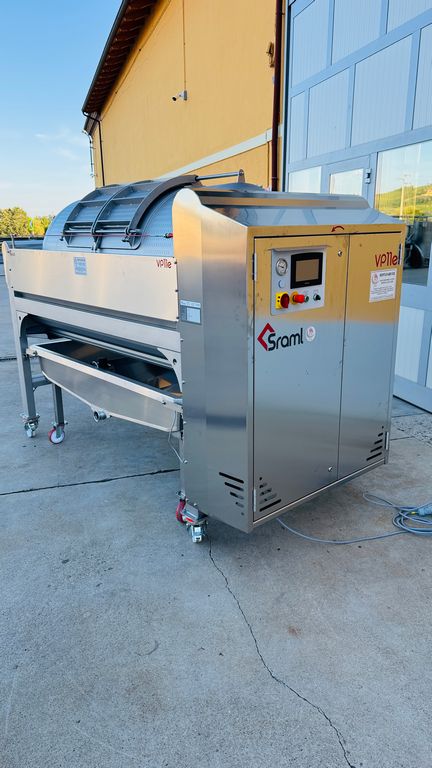

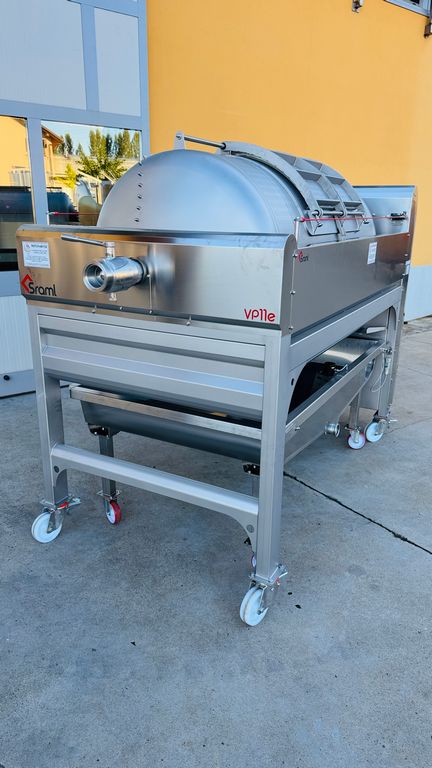

Pneumatic membrane press, model VP11, open cylinder.
• Made entirely of stainless steel
• Pivoting wheels with double brakes
• Cylinder rotation on both sides: left and right

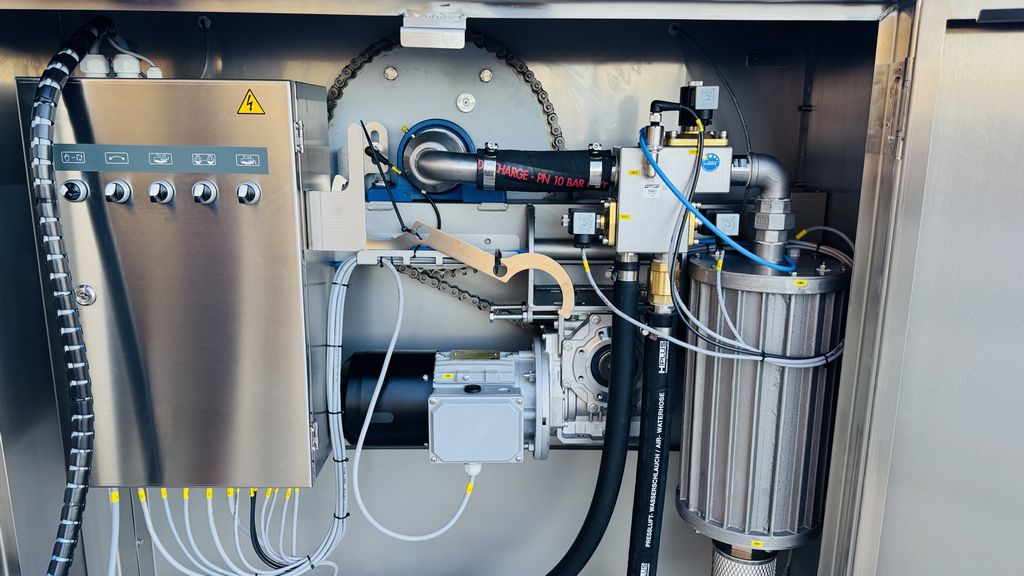

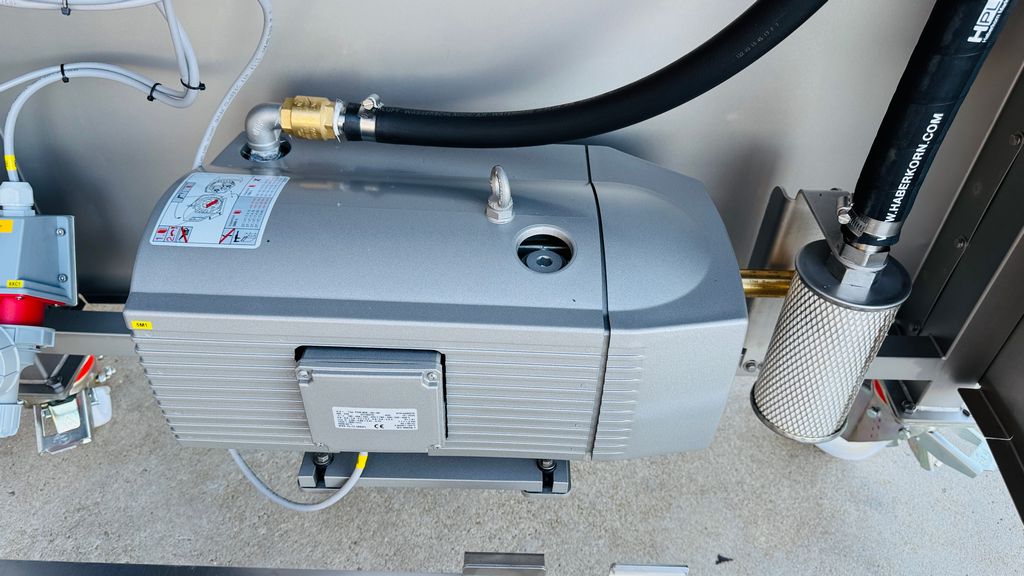

• Ultra-quiet Becker compressor
• Ultra-quiet fan for fast airflow up to +0.2 bar
• Ultra-quiet fan for membrane suction

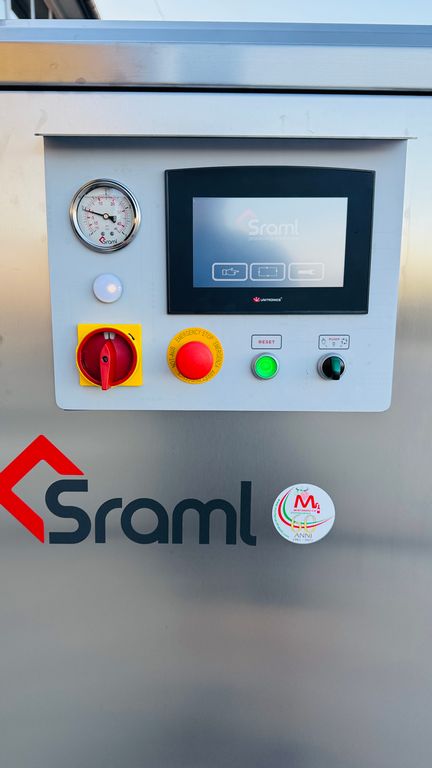

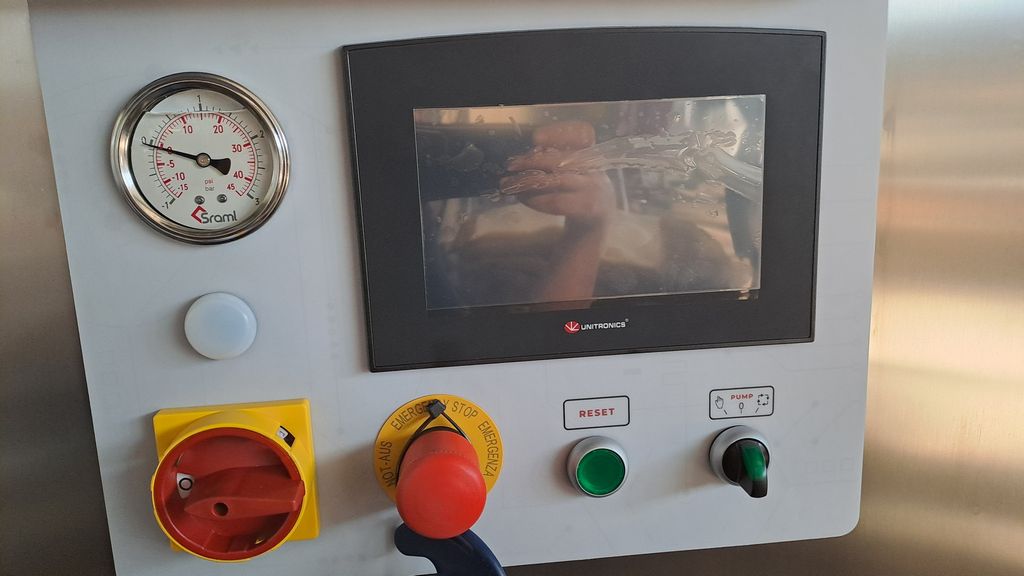

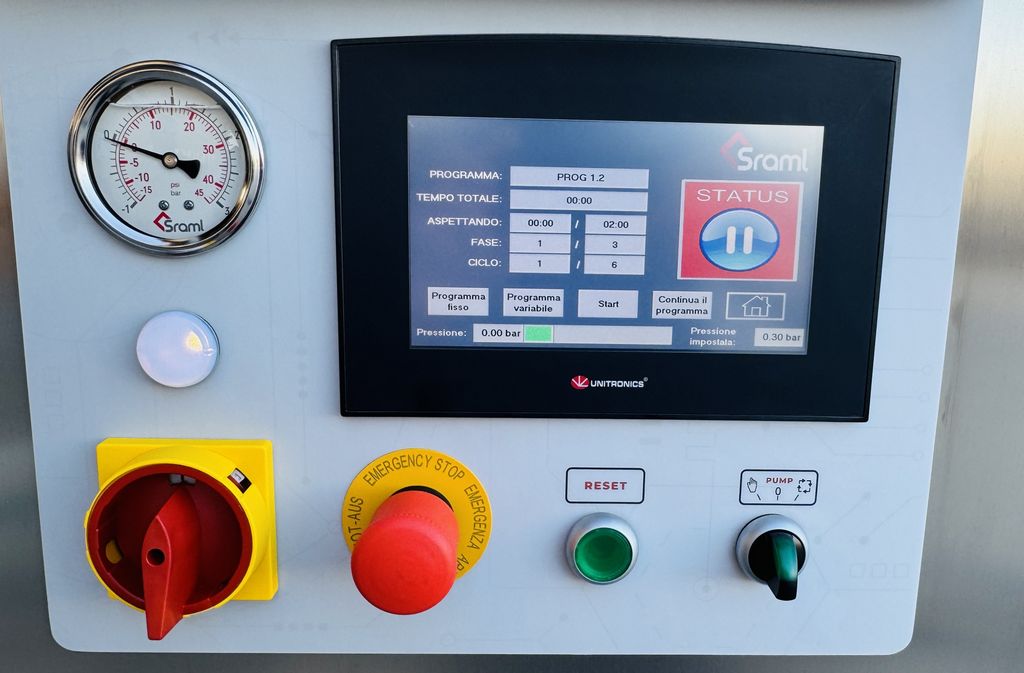

• AE automation with 7″ touchscreen, 12 programmed cycles + 8 customizable cycles

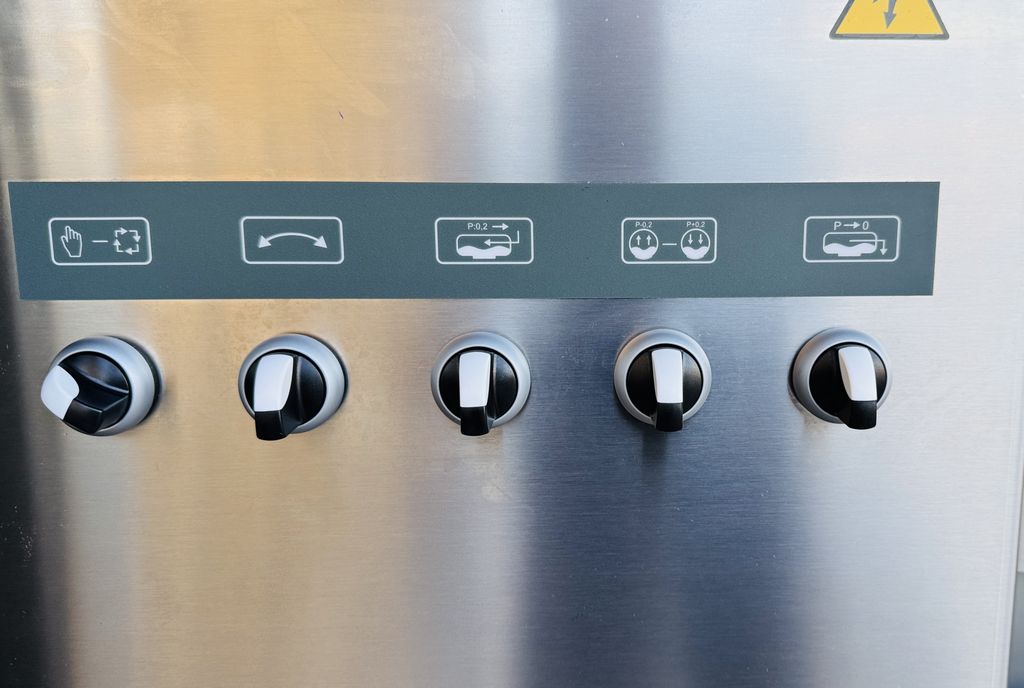

• Independent manual press operation

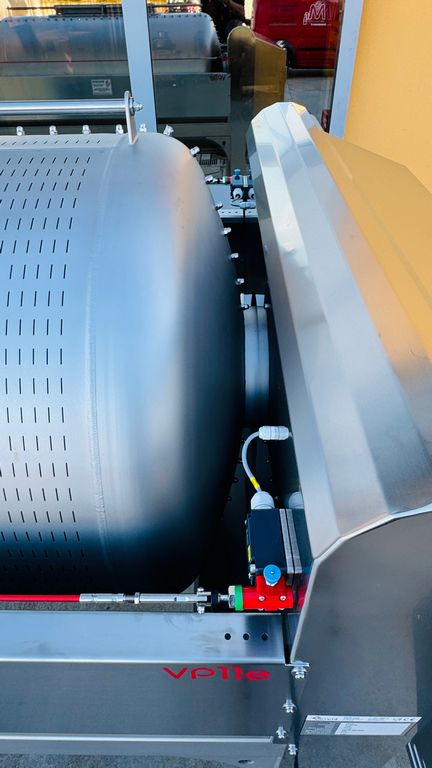

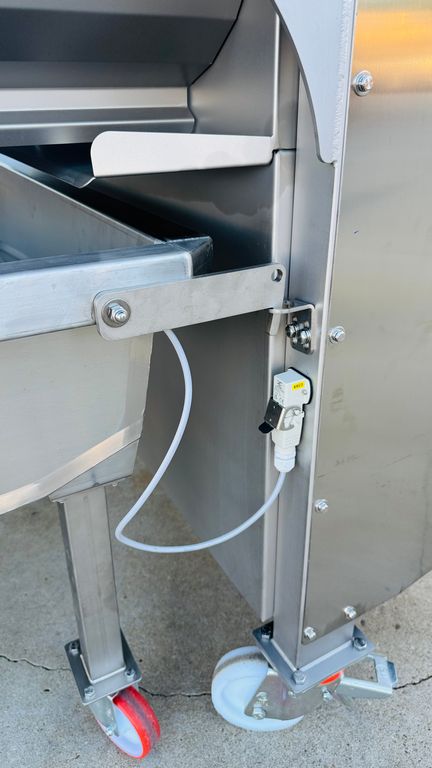

• Safety cable with interlocks on both sides and on the back of the press

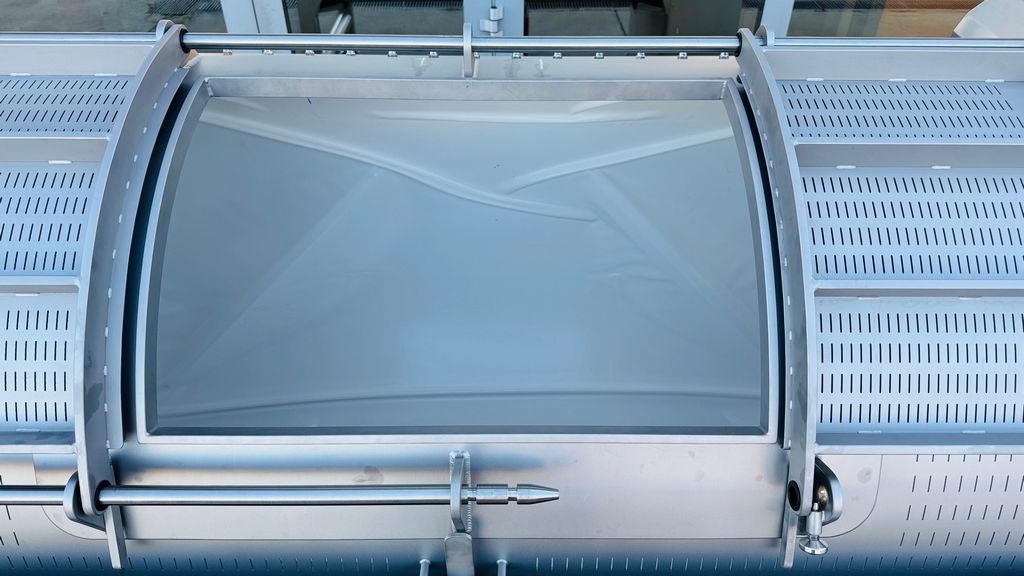

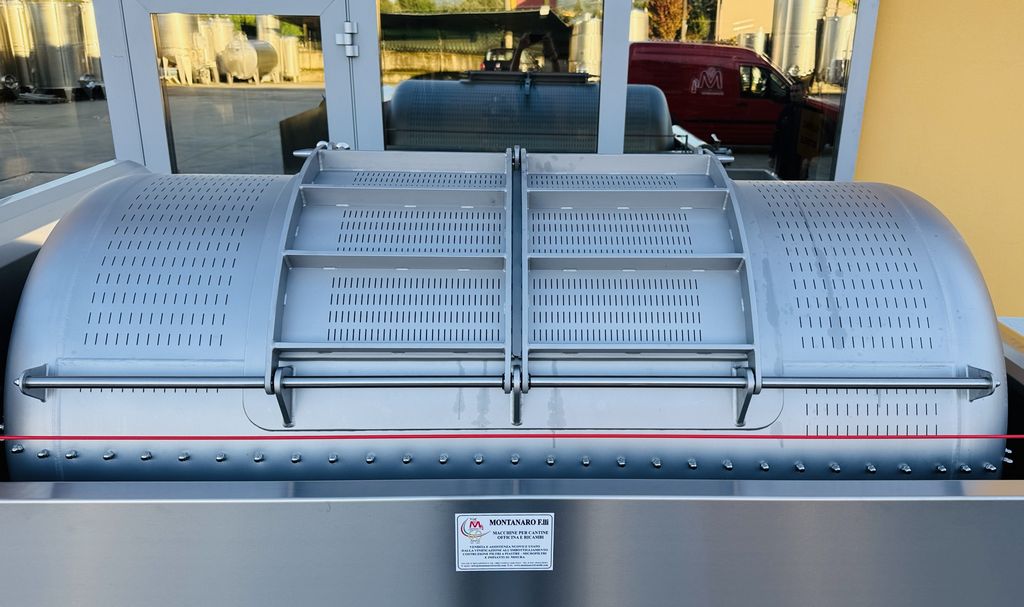

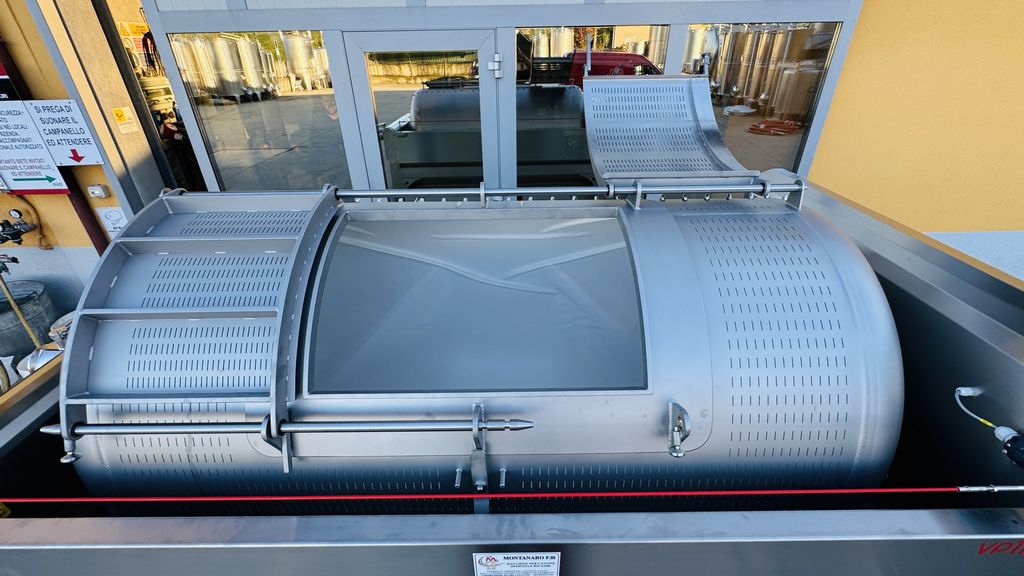

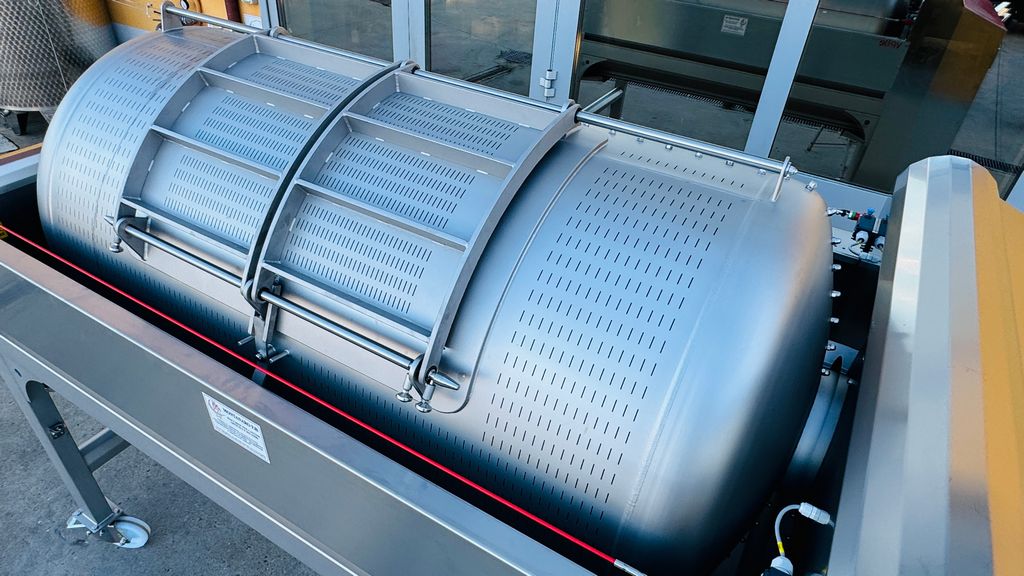

• Large double-door opening on the cylinder
• Special design for easy cleaning under the sliding doors

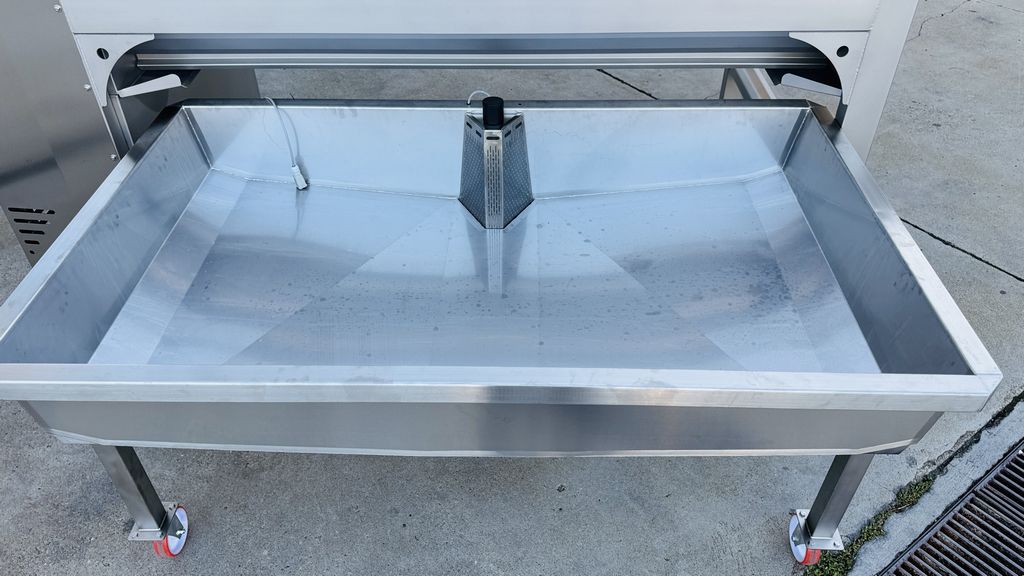

• Large collection tray on pivotong wheels with pre-filter on the outlet
• CE declaration of conformity

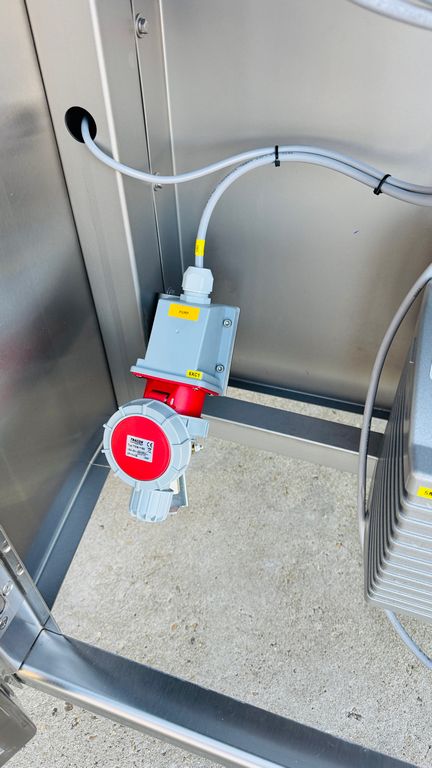

• 380V three-phase power supply
• Axial load with ball valve with ø 80 Garolla fittings
Optional extras upon request:

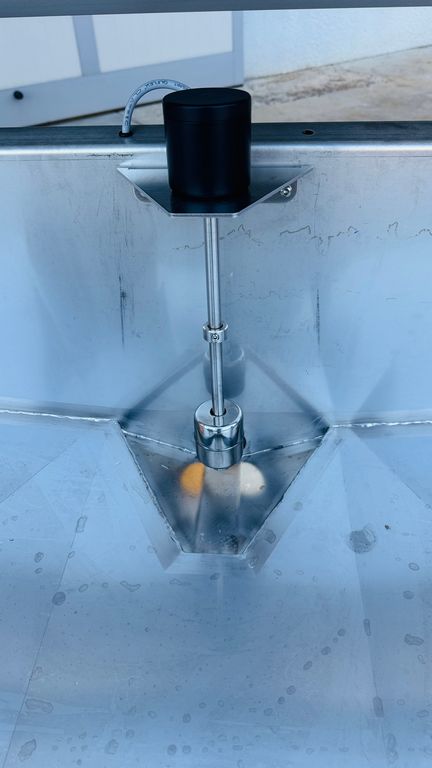

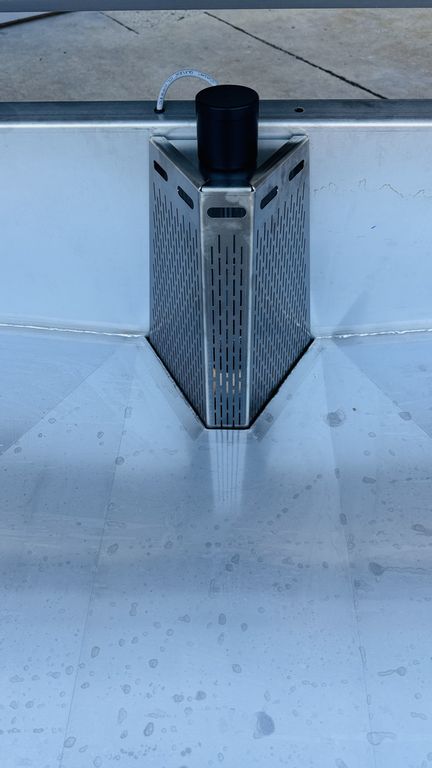

• Level probes: positioned inside the must collection tray to automatically manage the pump operation, connected to the press’s electrical panel
• Stainless steel leg risers, height 500 mm
• Acoustic alarm on axial load with pressure transducer (pressure switch)
