Description

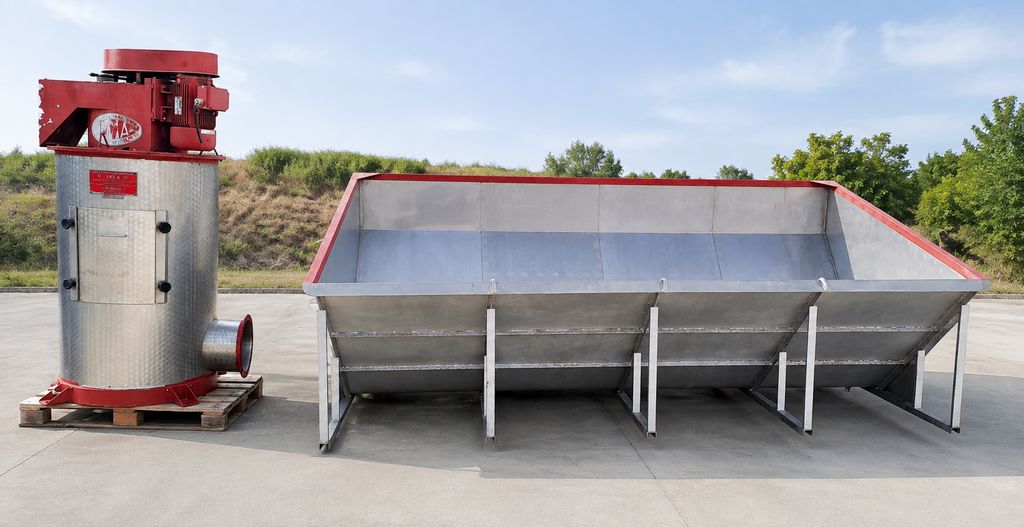

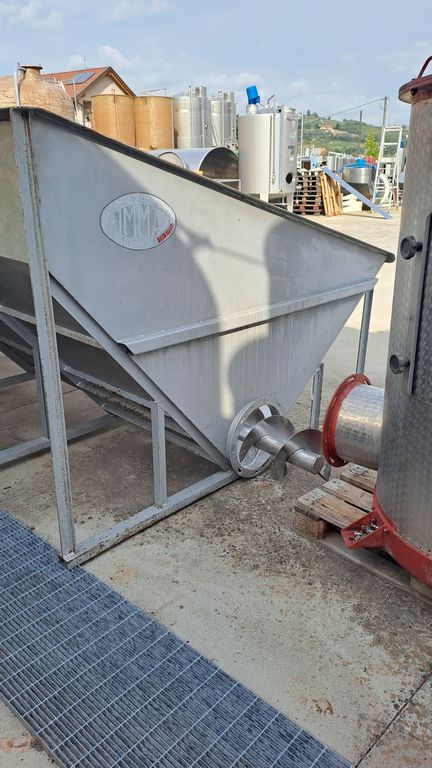

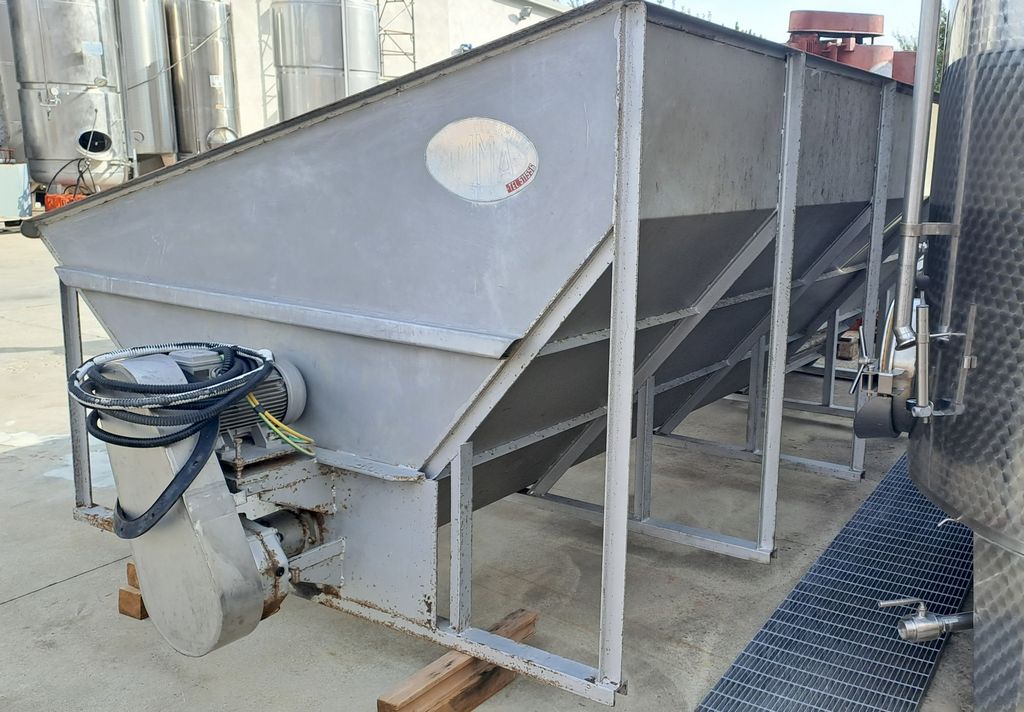

Stainless steel screw conveyor for grapes with painted steel outer frame, with the following features:
• Hopper length: approximately 4100 mm + approximately 500 mm for the drive unit
• Hopper width: 2250 mm approx.
• Front hopper height: 1000 mm approx.
• Rear hopper height: 1600 mm approx.

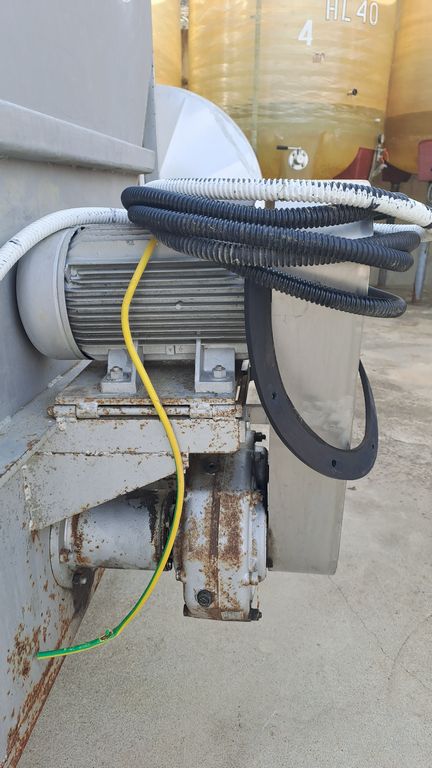

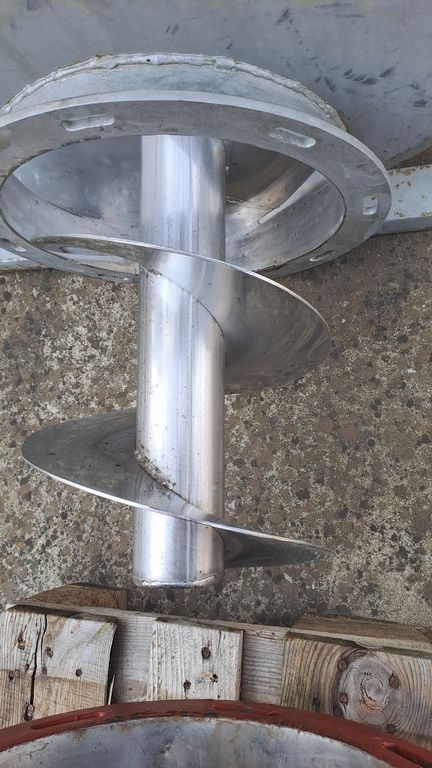

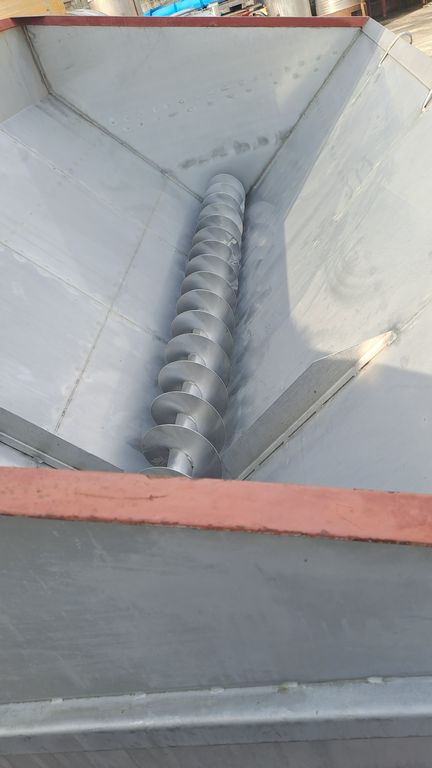

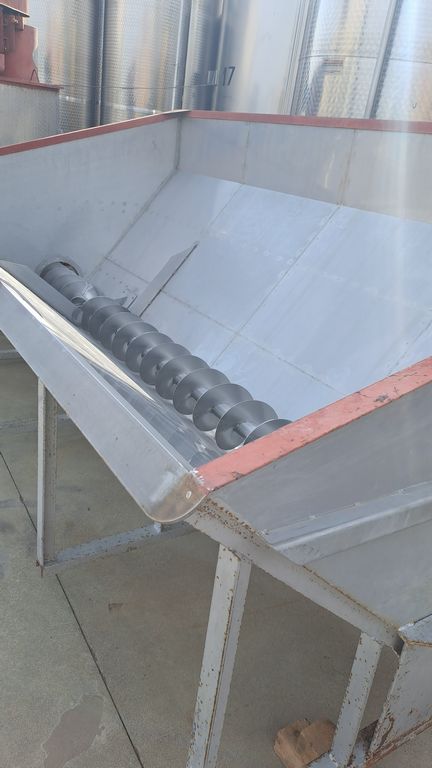

• Stainless steel screw Ø300 mm with gear motor drive
• Three-phase power supply 380V, 50 Hz

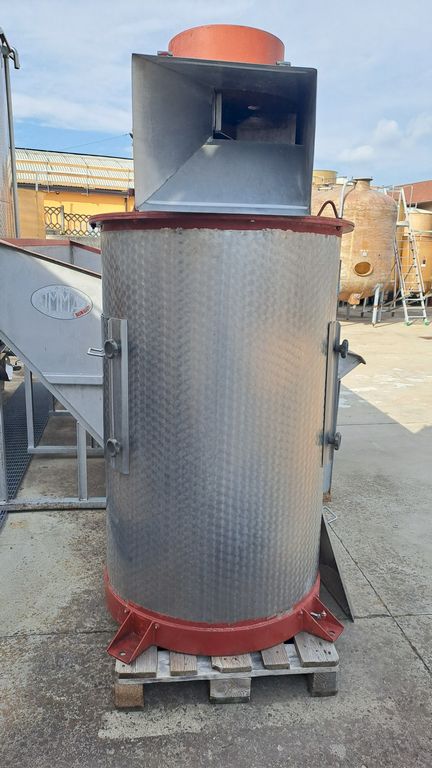

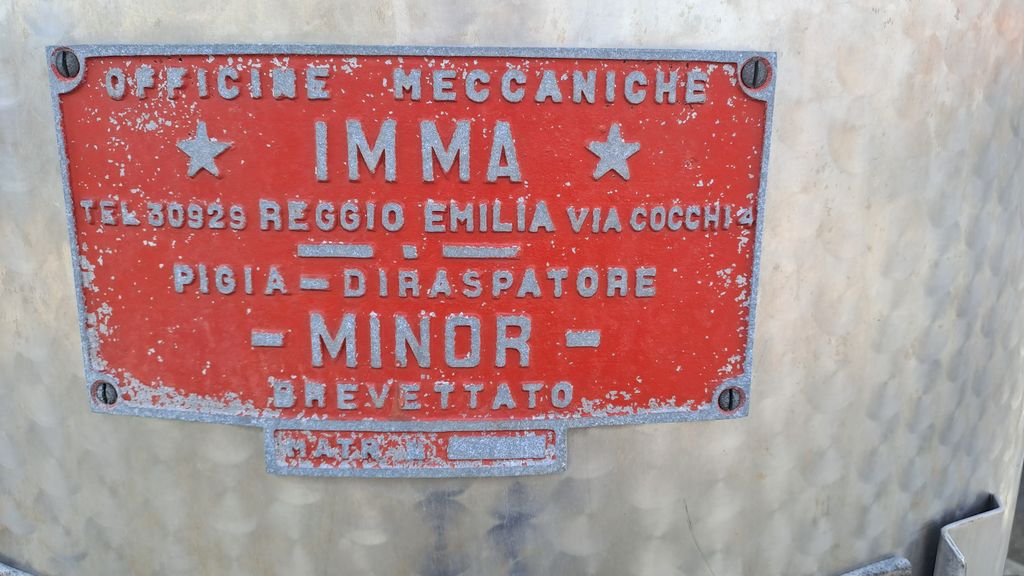

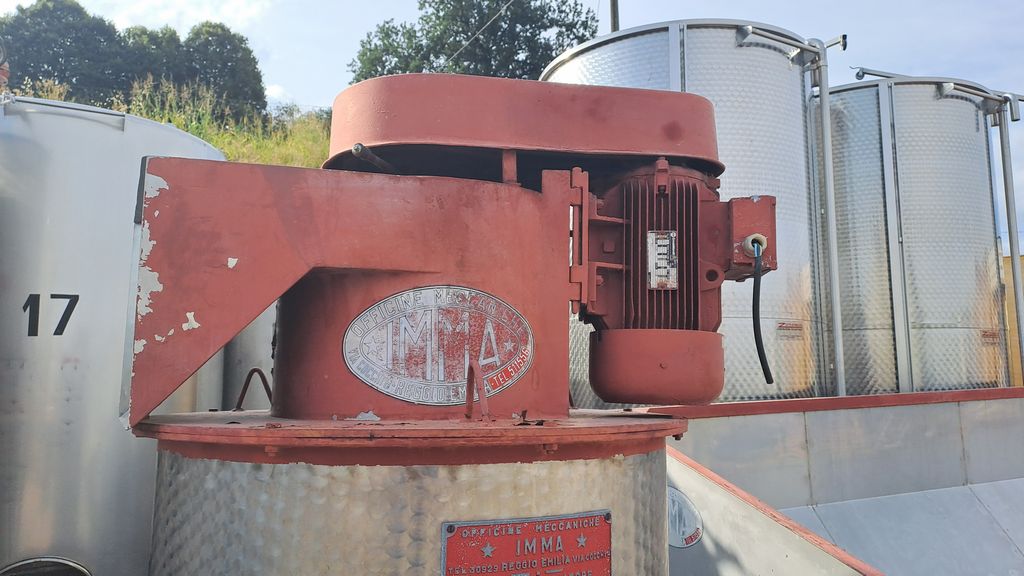

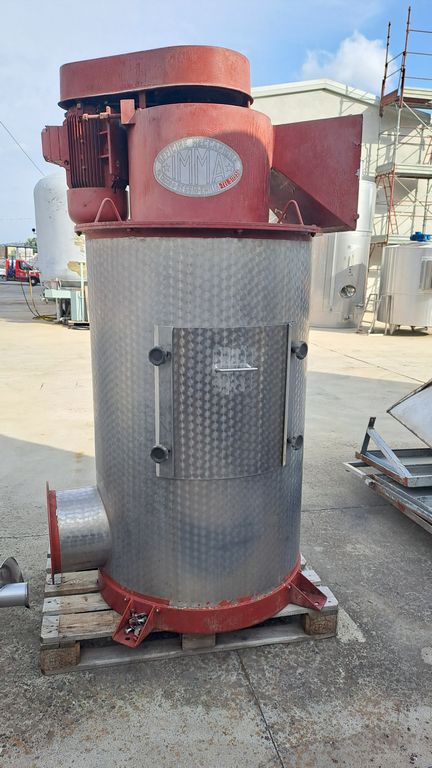

IMMA vertical stainless steel destemmer, production capacity approximately 150 q/h.
Bottom feeding through inlet connection for auger.
Stem discharge through the dedicated upper outlet.

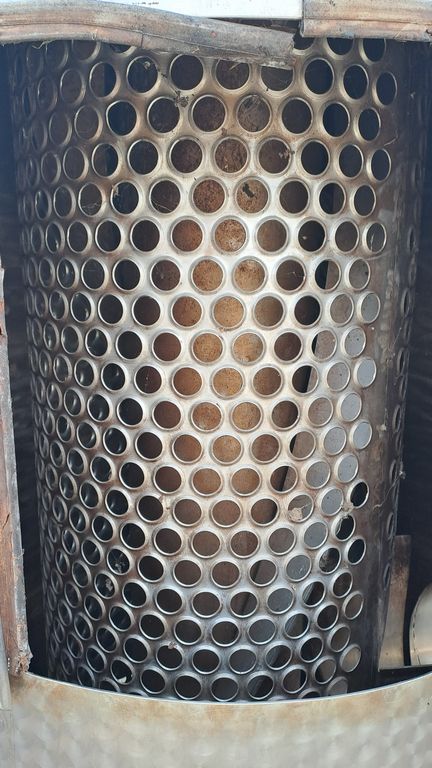

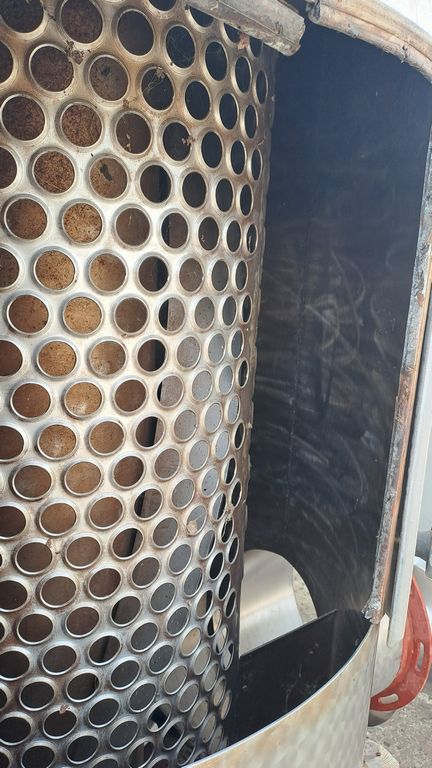

Internal draining screen with deep-drawn perforations over the full height .
Rotating drum fitted with continuous helical paddles.
Belt transmission with protective guard.

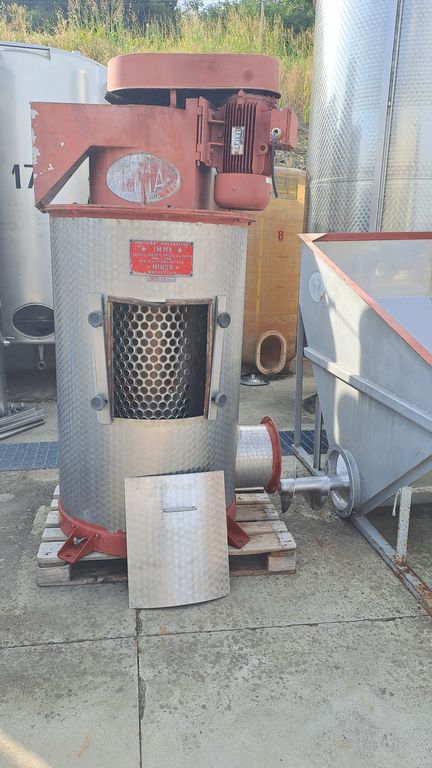

Hinged side access doors with locking knobs.

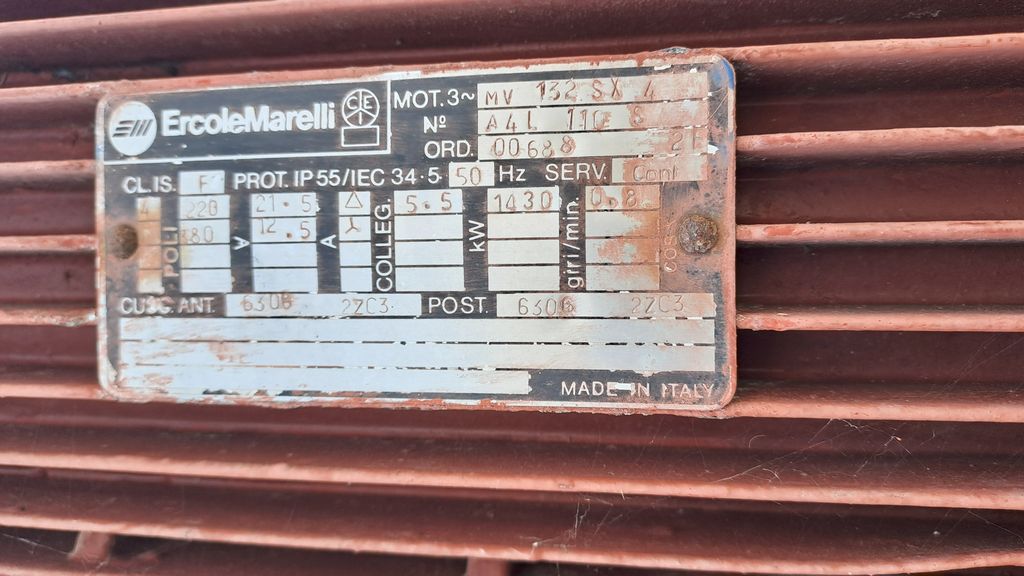

Three-phase electric motor: 5.5 kW , Power supply 380 V, 50 Hz .
Dimensions: Length 1200 mm x Width 1000 mm x Height approximately 2100 mm.
Used equipment in good condition, working.
